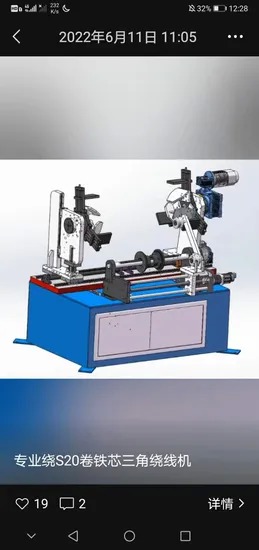

Professional S20 Model Transformer Winding Machine for Circular Oblong Elliptical Rectangular Coils with Iron Core

MOQ : 1

Price : 3000

Model NO. : S20

Outer Diameter : < 600mm

Axial Height : <800mm

Coil Form : Circular, Oblong, Elliptical, Rectangular

Wire Specification : Enameled Wire

Dimensions : 900*900*900

Wire Diameter : Φ 0.3 to Φ 4mm

Flat Wire Size : ≤ 3x12mm

Payoff Frame : Double ended flat wire and a set of round wires

Bearing Shaft : Φ 36x450mm

Winding Speed : 0-280r/min

Total Power : 5KW

Control System : PLC and servo motor

Production Capacity : 60000PCS/Year

Transport Package : Wooden

Contact Now

Purpose:

This equipment is suitable for winding circular, elliptical, oblong, rectangular power transformers, transformers, reactances.
The control part of the device coil adopts a PLC and servo motor system, which has a high level of automation and is particularly suitable for the winding production of amorphous high-voltage coils.
Professional S20 Model Transformer Winding Machine for Circular Oblong Elliptical Rectangular Coils with Iron Core

Professional S20 Model Transformer Winding Machine for Circular Oblong Elliptical Rectangular Coils with Iron Core

Model/Parameter: JC-800

Outer diameter of wire coil: ≤ 600mm

Axial height of coil: ≤ 800mm

Coil form: circular, oblong, elliptical, rectangular

Wire specification: enameled wire( Φ 0.3 to Φ 4mm), flat wire ≤ 3x12mm

Payoff rack: double ended flat wire and a set of round wires

Payoff frame material bearing shaft: Φ 36x450mm

Winding speed: 0-280r/min

Total power: 5KW
